Compressor Not Running — Initial Checks

VendnetUSA 3031 / 3038

SnackMedium confidenceExact parts not verified
Back to all issues

Compressor Not Running — Initial Checks

Safe, non-invasive checks to determine why the compressor is not operating. Does not include sealed-system work.

High VoltageOperator5-10 min
Cooling2 stepsoperator-intermediate

Qualified technician handoff: stop before live electrical testing, sealed-system refrigeration work, compressor service, or protected-compartment access unless a qualified technician is handling the work.

  • Oil puddle detected under compressor: Suspected refrigerant leak. Do not operate compressor. Tag machine. Contact manufacturer-authorized service.
  • Compressor extremely hot: Overload condition. Allow cooling. Investigate airflow and condenser before restarting.
  • Sealed-system access needed: Andon stop. Only manufacturer-authorized or EPA-certified technicians may perform sealed-system work.

Checklist

Guided Diagnostic Steps

Work from low-risk checks toward technician-level inspection only when evidence supports it.

Printable checklist

You can read or print the route now. The first checkbox click opens the service contact gate.

lead gated
  1. 1

    Check Temperature Control Setting

    operator-intermediatelow

    Locate the temperature control thermostat or sensor. Verify it is set to a normal cooling position, not off or defrost. Note current setting.

    Expected: Thermostat is set within normal operating range.

    Evidence to note: photo

  2. 2

    Inspect Evaporator Frost Pattern

    operator-intermediatehigh

    Observe the evaporator coil through the access panel or visible area. Note whether frost is present and its distribution pattern.

    Flashlight or Work Light
    Stop conditions
    • Evaporator completely iced over — do not force defrost with sharp objects

    Expected: Light, even frost across evaporator surface indicates normal operation. Heavy ice block indicates defrost or airflow issue.

    Evidence to note: photo

Tools for this route

Digital MultimeterFlashlight or Work LightThermometer

Location Help

Where to find this

Use this as orientation before touching the machine. It is location help, not a repair instruction.

Refrigeration System

Start at the affected product shelf or selection row; compare the tray, coil, and product path with a nearby working selection.

  • Maintains product temperature within safe range through compressor-driven forced-air cooling.
  • Compressor
  • Condenser coil and fan
  • Evaporator coil and fan

Do not open sealed-system or compressor areas unless a qualified refrigeration technician is handling the work.

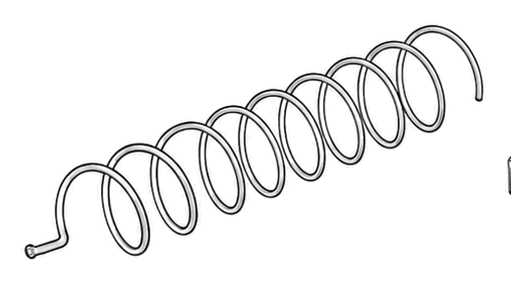

cabinet glass frontcontrol board genericspiral coildelivery bin sensor

Parts status

Exact public parts list not verified yet. Use this route to identify the system before ordering.

Candidate areas for part verification

Cooling componentsPower Input ComponentsVend Motors and Ejector MechanismsTray and Coil AssembliesController and Electronic ComponentsPayment System Components
