Compressor Will Not Run — Refrigeration Fault

Non-invasive checks to determine why the compressor is not starting, from thermostat settings through electrical supply to compressor health

High VoltageTechnician5-10 min
Cooling3 stepstechnician-advanced

Qualified technician handoff: stop before live electrical testing, sealed-system refrigeration work, compressor service, or protected-compartment access unless a qualified technician is handling the work.

  • Compressor hums but will not start: Stop cycling power to it. Locked rotor can overheat rapidly. Hand off to sealed-system technician.
  • Oil spots at compressor: Possible refrigerant leak. Do not attempt sealed-system repair. Requires licensed refrigeration technician.
  • Compressor extremely hot to touch with no recent run history: Unusual — investigate electrical fault. Do not attempt to start again until diagnosed.

Checklist

Guided Diagnostic Steps

Work from low-risk checks toward technician-level inspection only when evidence supports it.

Printable checklist

You can read or print the route now. The first checkbox click opens the service contact gate.

lead gated
  1. 1

    Verify temperature setpoint and cooling mode

    operator-intermediatelow

    Enter service mode and check that the cooling function is enabled and the setpoint is within a normal range. Check the cooling log if available for recent temperature readings.

    Stop conditions
    • display-unreadable-or-blank

    Expected: Cooling is enabled and setpoint is appropriate for the products stored

    Evidence to note: note

  2. 2

    Check condenser cleanliness and airflow

    operator-intermediatehigh

    With power off, visually inspect the condenser coil. If heavily soiled, clean carefully using appropriate coil-cleaning methods. Ensure the condenser fan can spin freely.

    Qualified technician handoff: stop before live electrical testing, sealed-system refrigeration work, compressor service, or protected-compartment access unless a qualified technician is handling the work.

    Stop conditions
    • condenser-fan-motor-seized

    Expected: Condenser coil is clean enough to allow adequate airflow; condenser fan rotates freely

    Evidence to note: photo

  3. 3

    Verify compressor run signal and electrical supply

    technician-advancedlive-voltage

    With power restored and the machine calling for cooling, determine if the compressor is receiving its run signal. Listen for a start relay click. If qualified, check voltage at the compressor electrical connection area.

    Qualified technician handoff: stop before live electrical testing, sealed-system refrigeration work, compressor service, or protected-compartment access unless a qualified technician is handling the work.

    Stop conditions
    • compressor-hums-but-will-not-start-after-repeated-attempts
    • oil-spot-leak-evidence

    Expected: Compressor receives run command and voltage; starts and runs

    Evidence to note: meter-reading

Tools for this route

No special tools listed

Location Help

Where to find this

Use this as orientation before touching the machine. It is location help, not a repair instruction.

Power Input

Start with exterior airflow, door seal, and temperature-setting checks; treat the lower refrigeration compartment as technician-led.

  • Receives and distributes main line voltage to the vendor power supply
  • power-cord
  • main-terminal-block
  • circuit-breaker-or-fuse

Do not open sealed-system or compressor areas unless a qualified refrigeration technician is handling the work.

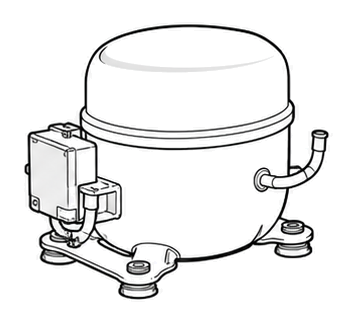

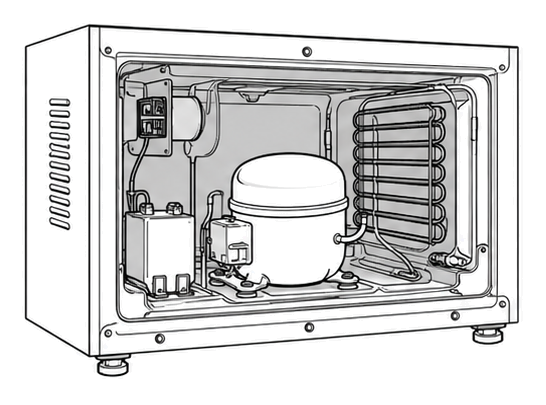

cabinet glass frontrefrigeration baycompressortemperature sensor

Parts status

Exact public parts list not verified yet. Use this route to identify the system before ordering.

Candidate areas for part verification

Cooling componentsControl Boards and Program ChipsVend MotorsTemperature and Product SensorsInterior Lighting ComponentsHelix Coils and Tray Assemblies
